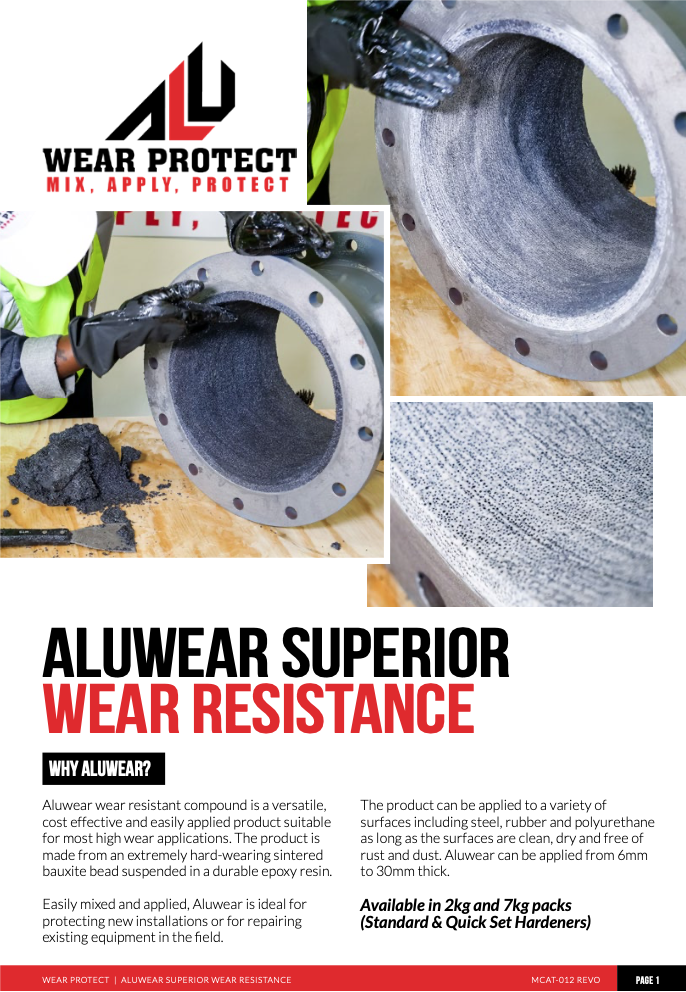

WHY ALUWEAR?
Aluwear wear resistant compound is a versatile, cost effective and easily applied product suitable for most high wear applications. The product is made from an extremely hard-wearing sintered bauxite bead suspended in a durable epoxy resin.
Easily mixed and applied, Aluwear is ideal for protecting new installations or for repairing existing equipment in the field.
The product can be applied to a variety of

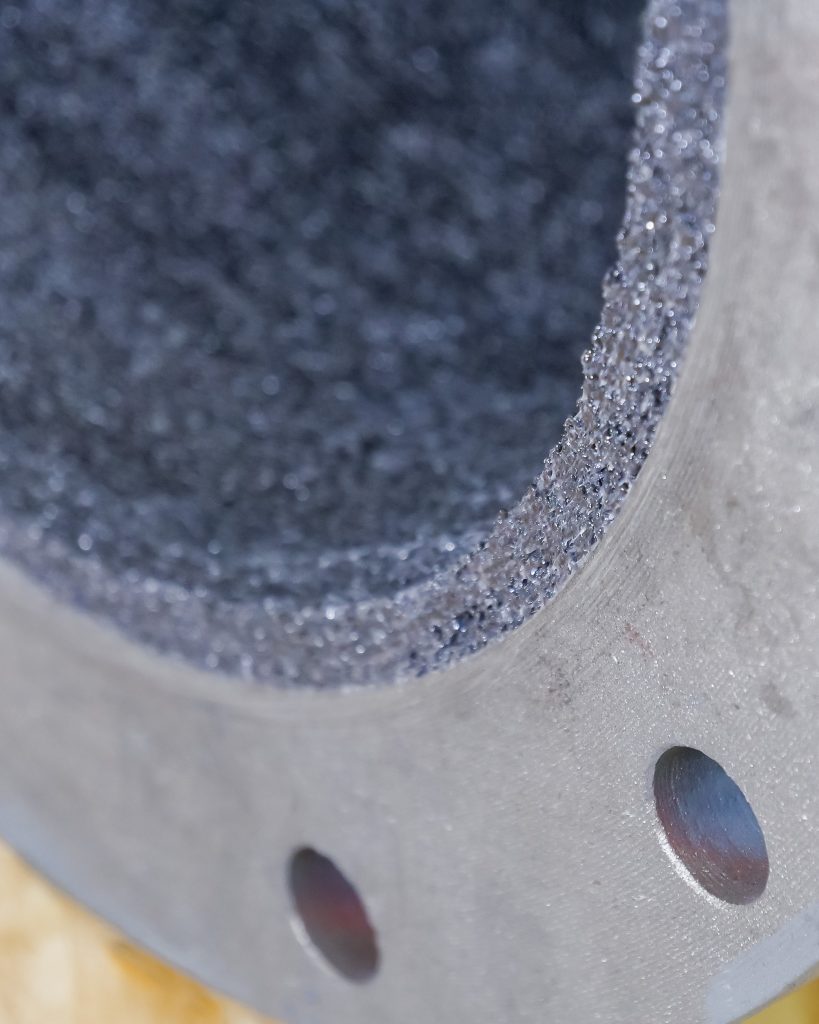

surfaces including steel, rubber and polyurethane as long as the surfaces are clean, dry and free of rust and dust. Aluwear can be applied from 6mm to 30mm thick.
Available in 2kg and 7kg packs
Aluwear wear resistant compound is ideally
suited for the following applications;
- For the repair of worn basalt lined pipes or chutes.
- The general repair of classifying cyclones until permanent repairs can be carried out.
- The general lining of any impact free chutes.
- The general repair of any pipework or chutes due to abrasion from slurries.
- Temporary pump casting repairs.
- The repair of pipes and chutes transporting pneumatically conveyed minerals.

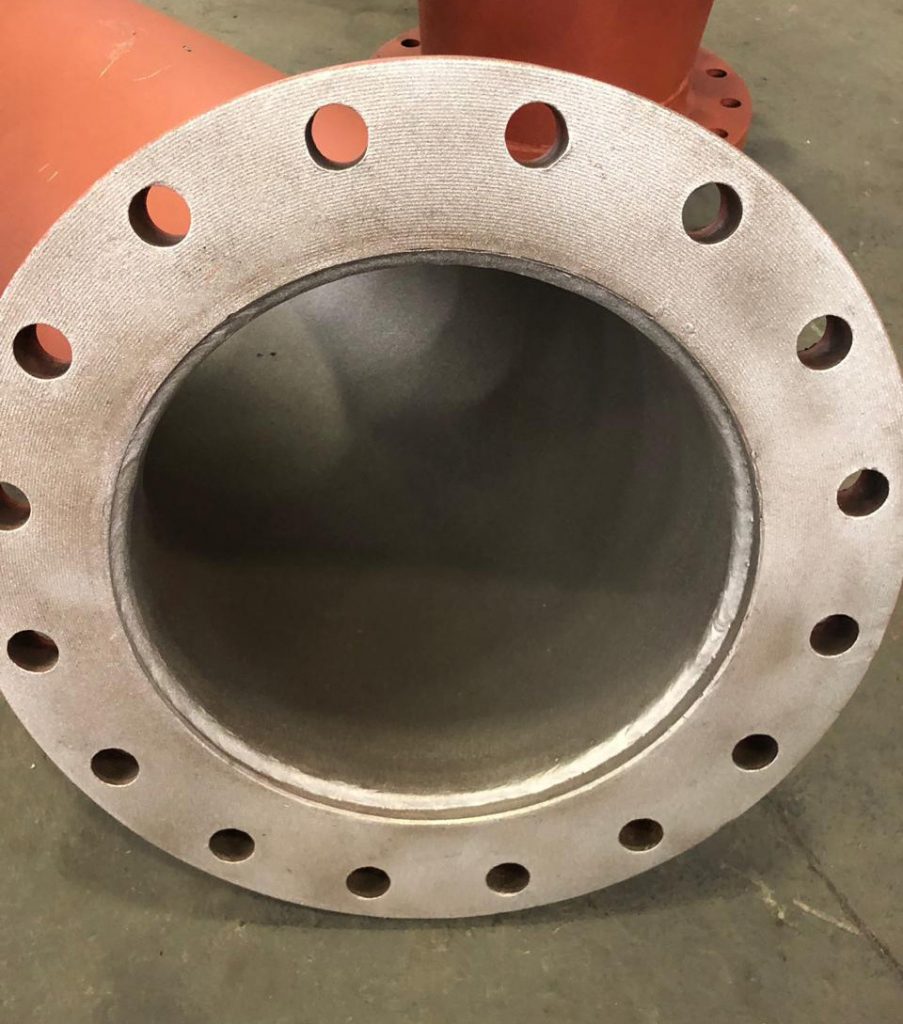

- The lining of reducers and bends in slurry pipelines.
- The lining of general chute work and tanks.
- Repair of Alumina tile lined chutes.

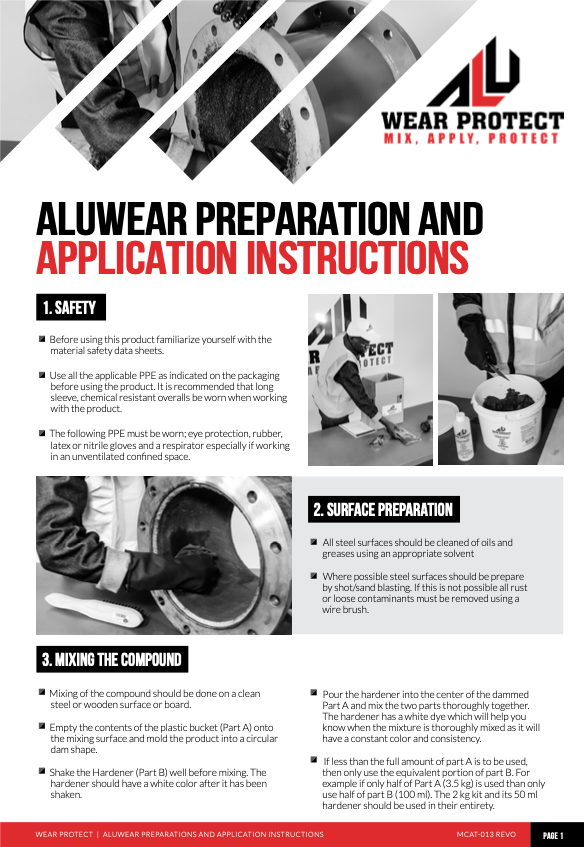

1. SAFETY
- Before using this product familiarize yourself with the material safety data sheets.
- Use all the applicable PPE as indicated on the packaging before using the product. It is recommended that long sleeve, chemical resistant overalls be worn when working with the product.
- The following PPE must be worn; eye protection, rubber, latex or nitrile gloves and a respirator especially if working in an unventilated confined space.
2. SURFACE PREPARATION
-

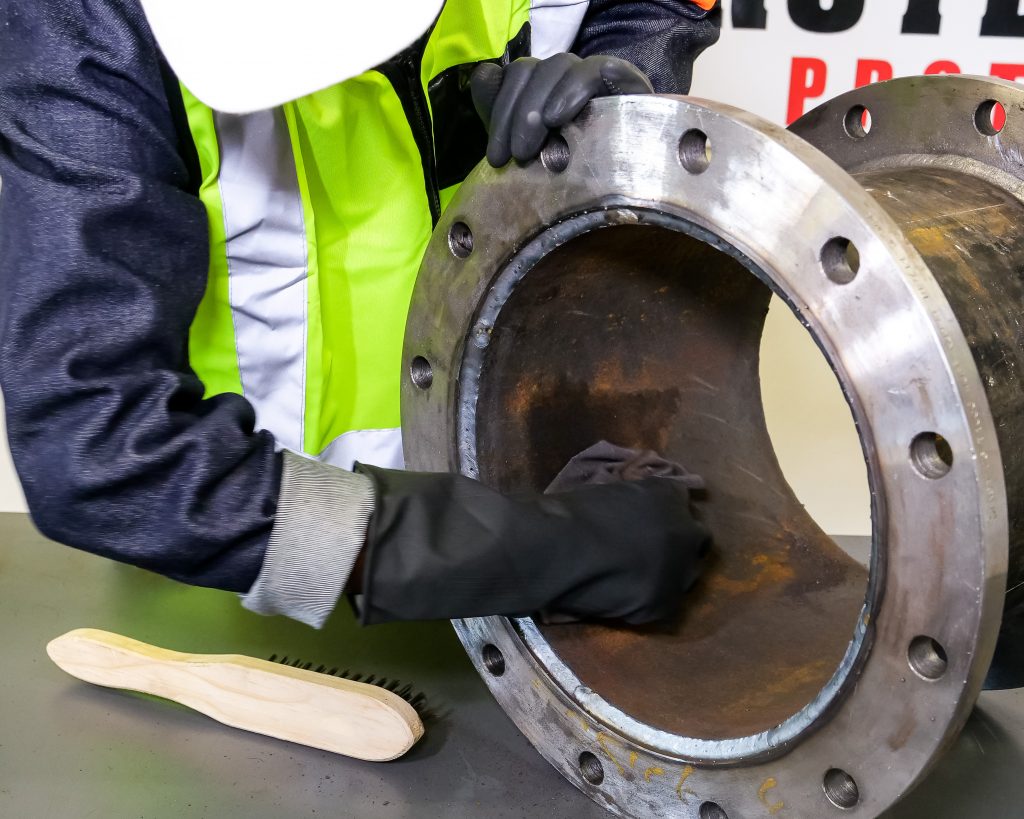

All steel surfaces should be cleaned of oils and greases using an appropriate solvent
-
Where possible steel surfaces should be prepare
by shot/sand blasting. If this is not possible all rust or loose contaminants must be removed using a wire brush.
3. MIXING THE COMPOUND
- Mixing of the compound should be done on a clean steel or wooden surface or board.
- Empty the contents of the plastic bucket (Part A) onto the mixing surface and mold the product into a circular dam shape.
- Shake the Hardener (Part B) well before mixing. The hardener should have a white color after it has been shaken.
- Pour the hardener into the center of the dammed Part A and mix the two parts thoroughly together. The hardener has a white dye which will help you know when the mixture is thoroughly mixed as it will have a constant color and consistency.
- If less than the full amount of part A is to be used, then only use the equivalent portion of part B. for example if only half of Part A (3.5 kg) is used than only use half of part B (100 ml). The 2 kg kit and its 50 ml hardener should be used in their entirety.
4. APPLYING THE COMPOUND

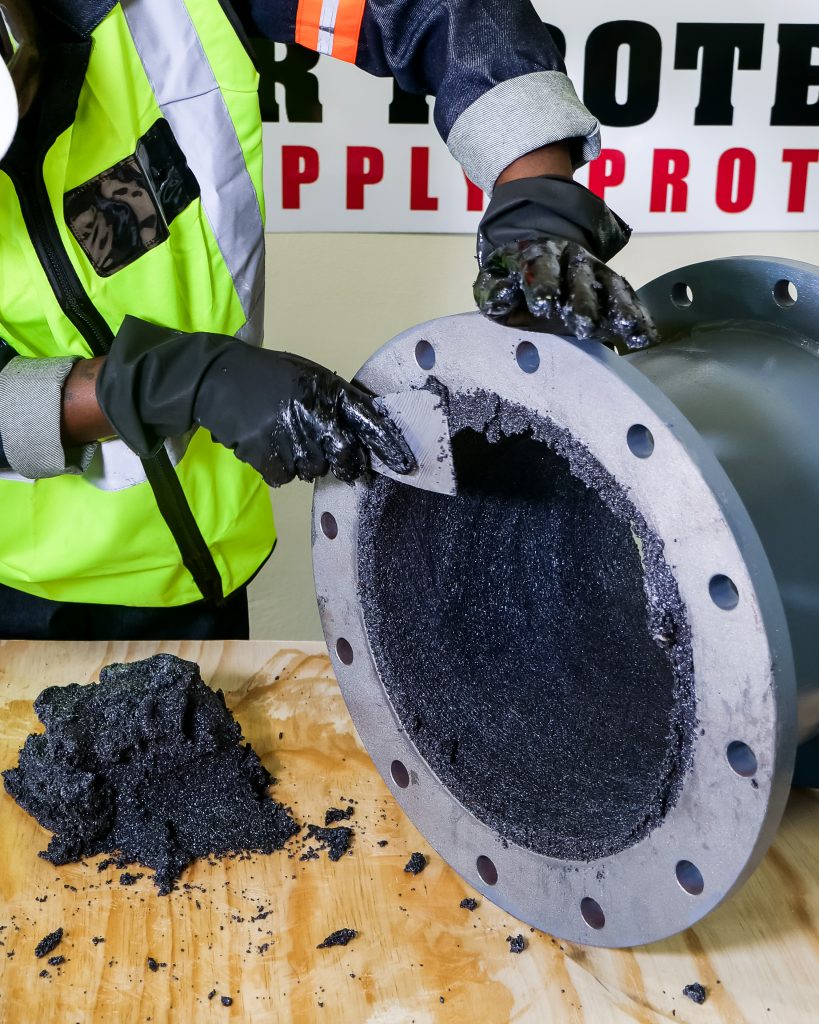

The mixed compound can be applied by hand or by using a tool like a spatula or a trowel.
Use a pushing or squeezing action to apply the compound to the surface to be protected. Make sure there are no trapped air pockets in the applied compound.

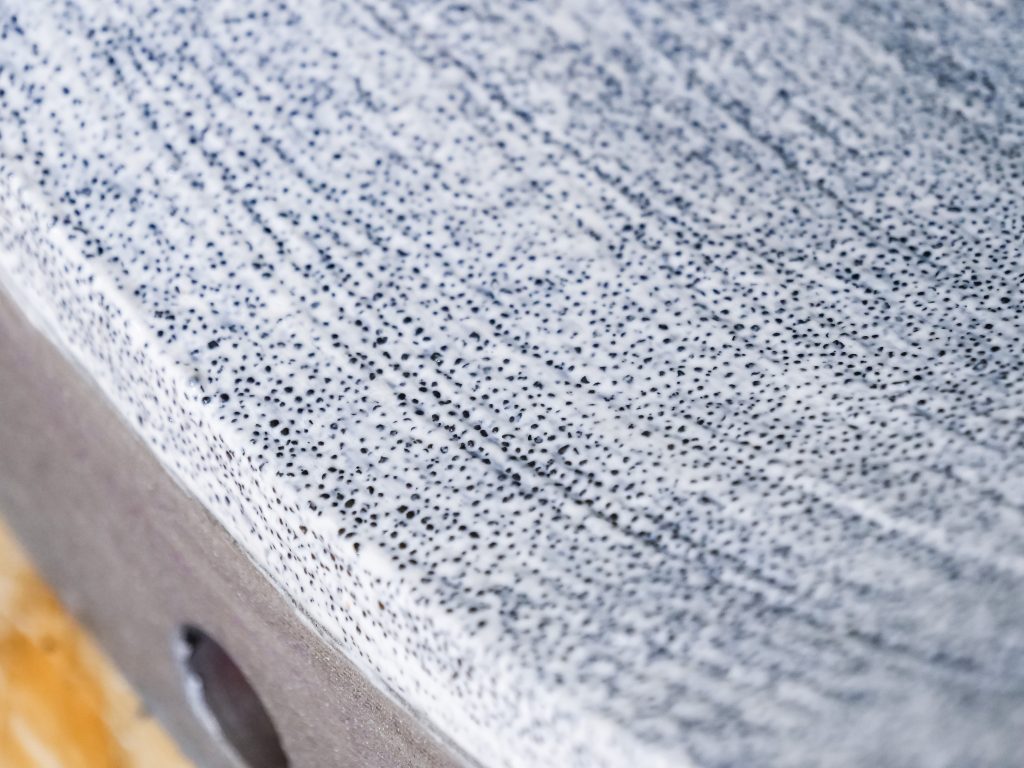

To obtain a smooth finish to the compound apply a small amount of water to the surface of the applied compound and smooth it off by hand.
5. CURING TIME FOR THE PRODUCT
It is recommended that Aluwear compound only be mixed and applied in ambient temperatures greater than 13 C. As a general rule the following curing times are recommended curing cycle at room temperature.
| Maximum pot life after mixing | 40 minutes |
| Minimum curing time at room temperature | 4 hours |
| Minimum recommended curing cycle at room temperature | 24 to 48 hours |
